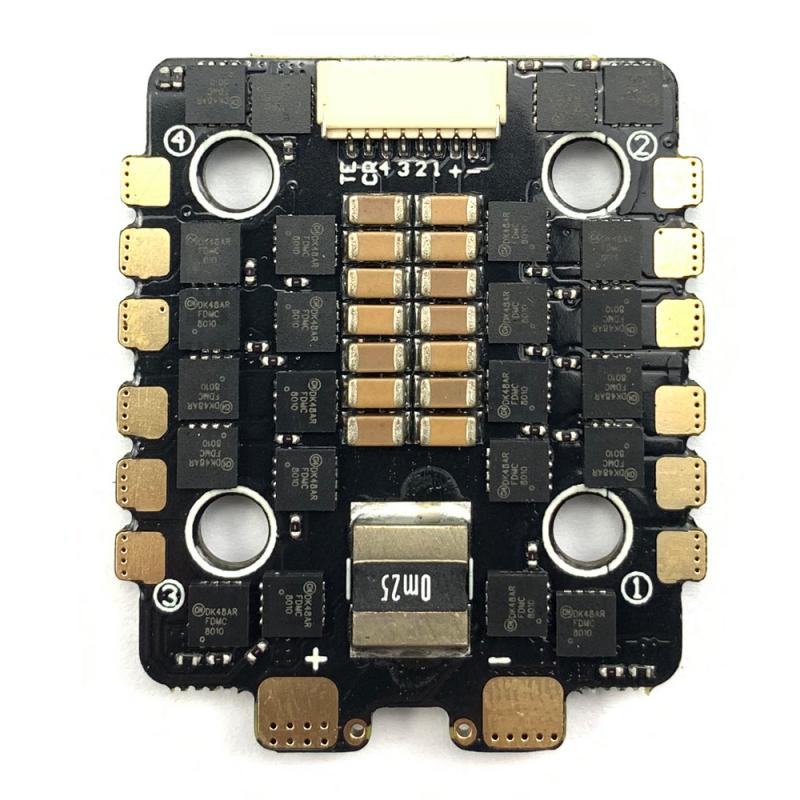

AIKON AK32PIN V2 4-IN-1 ESC 35A 6S with heat sink

The Aikon AK32 4-in-1 35A 6S is a new generation ESC that uses a variety of bleeding edge technologies in hardware and firmware.

What makes the AK32 worth your investment?

• BLHeli_32 code base
• Programmable PWM frequency of up to 48KHz
• Auto-timing for higher efficiency and reliability
• Analog Voltage/Current sensing
• Adjustable “Brake on Stop” force
• Improve direction change in Bidirectional mode
• One current sensor to measure the total amp draw and telemetry functions.
• ESC Telemetry (Voltage and RPMs and current)
• Configuring from FC using DShot commands
• Programmable sine modulation mode
• Programmable soft bidirectional mode
• Programmable autonomous periodic (every 32ms) telemetry mode
• Hardware noise filter on the signal input

SPECIFICATION

• Battery: 2-6s
• Constant Current: 35A
• Burst Current: 45A
• Mount Hole: 20*20mm
• Firmware: BLHeli32
• MCU: STM32PINF0
• Bootloader: Yes
• Weight( with/wire): 10g
• Signal wire length: 100mm
• Battery wire length: 100mm
