SpeedyBee Mario 5 Frame (Choose Version)

SpeedyBee Mario 5 Frame is a premium 5-inch FPV drone frame built for performance, versatility, and rock-solid durability. Available in multiple configurations, it supports both analog and digital (DJI O4) builds, making it perfect for freestyle pilots, racers, and cinematic flyers alike.

Choose Your Version:

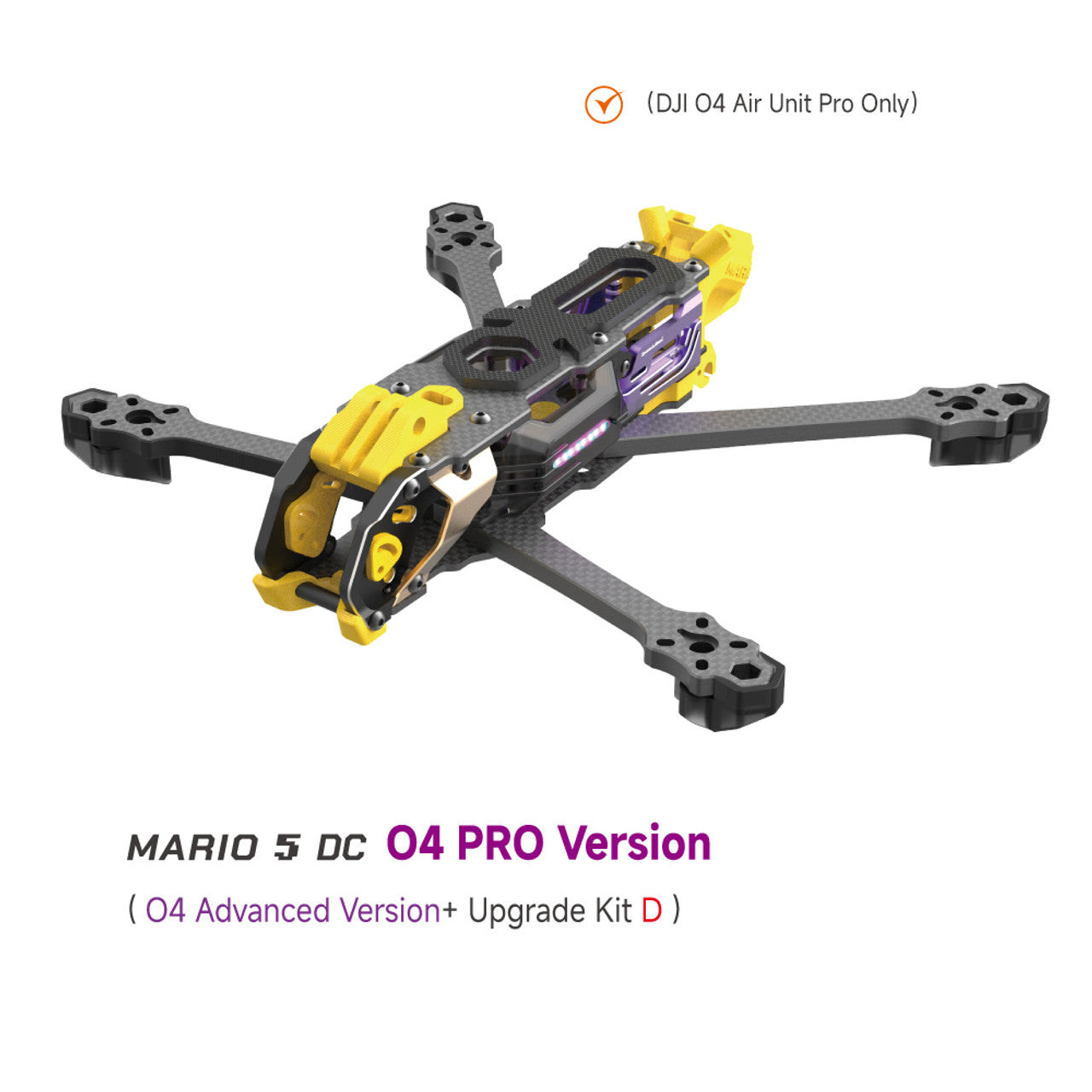

• DC O4 PRO Version – Deadcat layout with DJI O4 compatibility

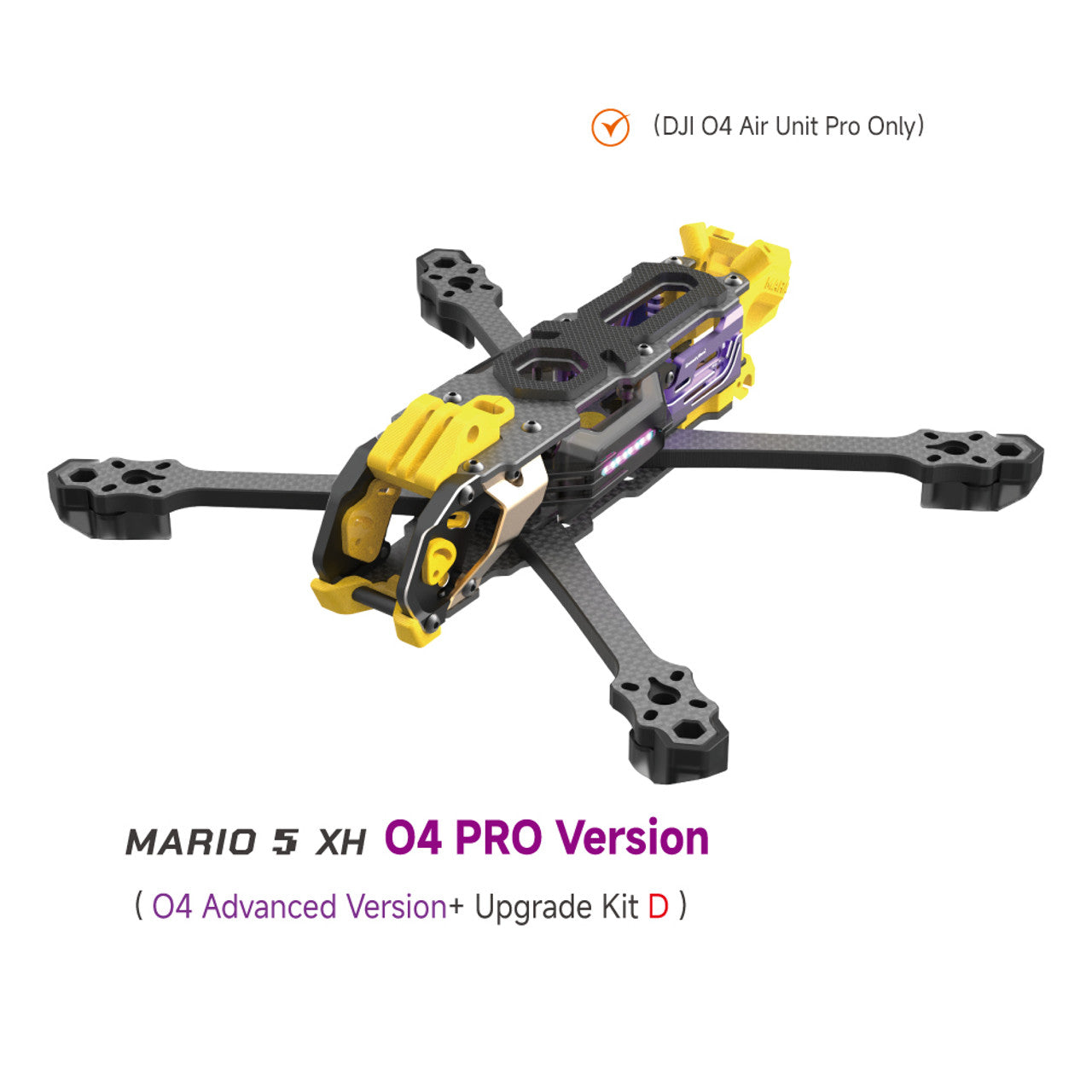

• XH O4 PRO Version – Squashed X layout with DJI O4 compatibility

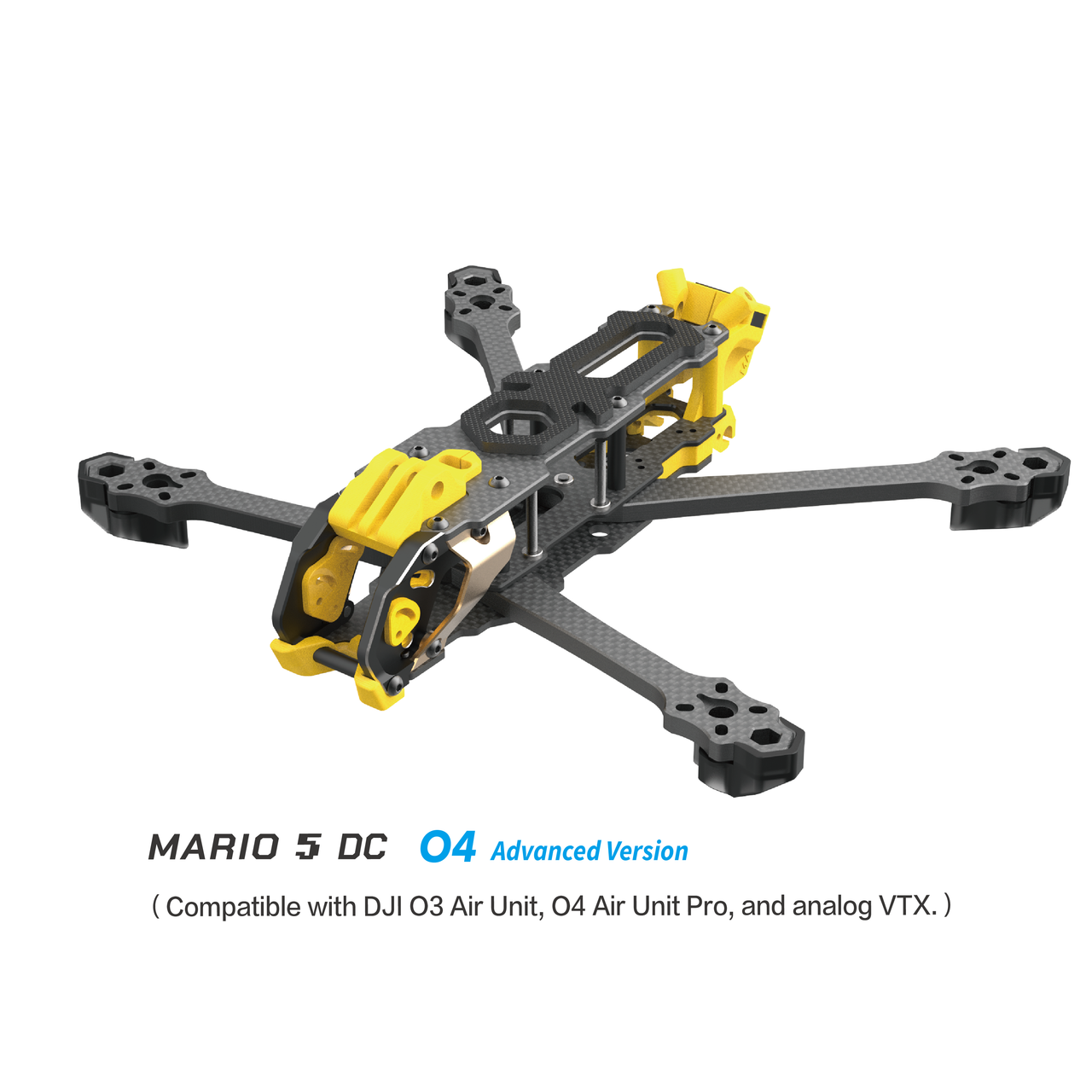

• DC O4 Advanced Version – Deadcat layout with DJI O4 and premium enhancements

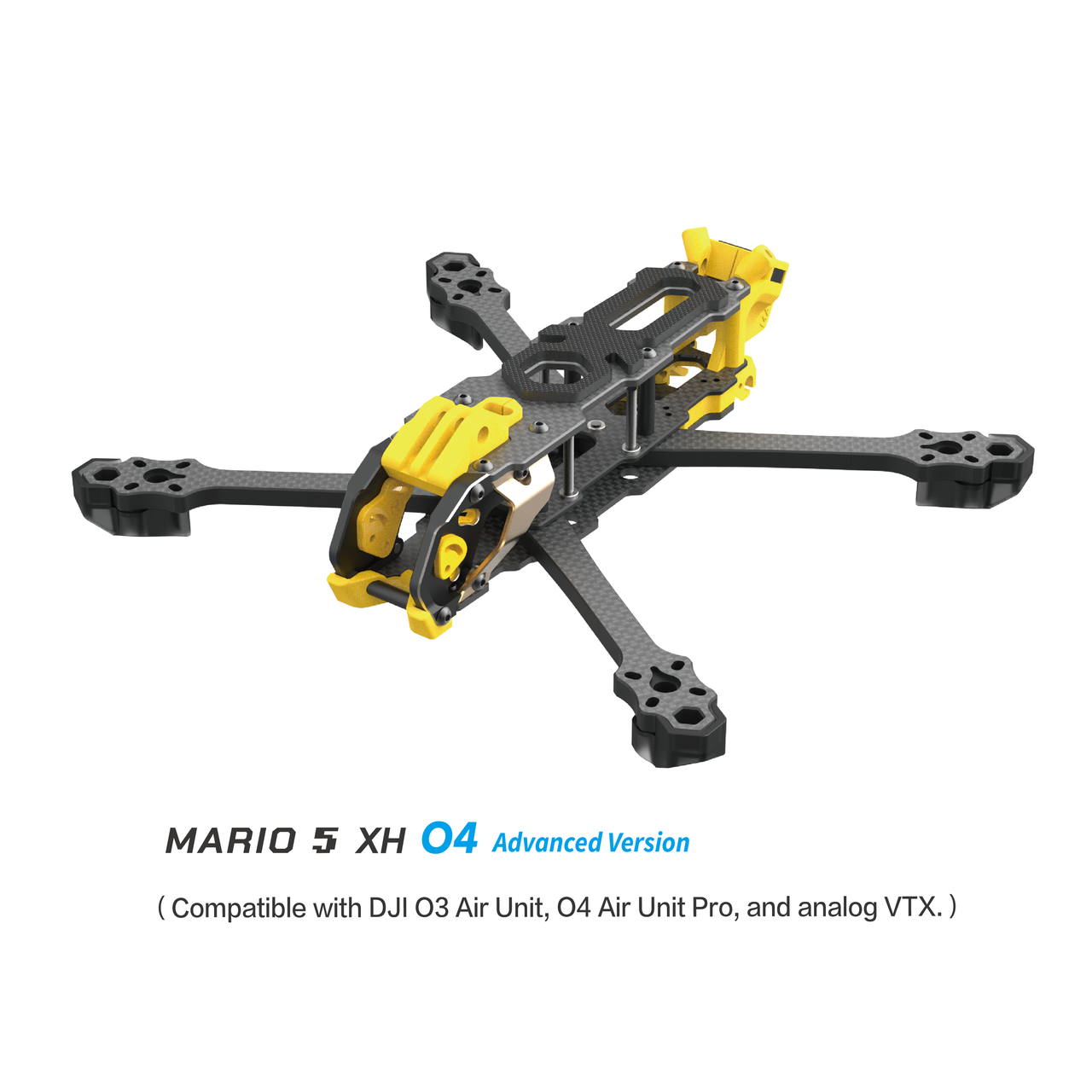

• XH O4 Advanced Version – Squashed X layout with DJI O4 and premium enhancements

Key Features:

• 5mm carbon fiber arms for strength and vibration damping
• Deadcat and XH geometries to suit your flying style
• Designed for DJI O4 system, analog FPV, and HD digital systems
• Supports 20x20 and 30x30 mounting holes for stacks or AIO
• Thoughtfully designed camera protection and ESC cooling channels

Build It Your Way: Whether you're building a cinematic cruiser or an agile freestyle beast, the Mario 5 frame gives you the freedom to configure your quad just how you want it.

What's Included:

• 1 x SpeedyBee Mario 5 Frame Kit (version selected)
• All necessary screws, TPU parts, and mounting accessories

Unleash your flight with SpeedyBee Mario 5 – power, precision, and performance in one customizable frame.





Specifications

Model	SpeedyBee Mario 5 Frame
Mario 5 DC Wheelbase	227mm
Mario 5 DC Weight	129 ±5g (3D Printed Parts Excluded)
	170 ±5g (3D Printed Parts and Injection)
Mario 5 XH Wheelbase	226mm
Mario 5 XH Weight	126 ±5g (3D Printed Parts Excluded)
	167±5g (3D Printed Parts and Injection)
Top Plate Thickness	2.5mm(T300 3K)
Middle Plate Thickness	2.0mm(T300 3K)
Bottom Plate Thickness	2.5mm(T300 3K)
Arm Thickness	6mm(T300 3K)
Camera Mounting Screw	7mm
3D Printed Parts	Yellow TPU
Battery Anti-Slip Pad	Silicone 3mm
Motor Spring Hole Position	Φ8mm
Compatible Propeller Size	Max 5.1 Inch
Motor Mounting Hole Distance	16-19mm
FC Mounting Hole	30.5x30.5(M3)
VTX Mounting Hole	20x20(M2) / 25.5x25.5(M2)
Head Material	Aviation Aluminum Alloy
Aluminum Column Material	7075 D5*23mm/D46*22mm
Internal Mounting Height	23-31mm
Receiver Installation Space	25*13*6mm
Suitable Capacitor Size	Φ10mm*20mm
GPS Installation Size	18*18*7
Camera Compatibility	19mm/20
