Axisflying iStack - F722 DJI FC + 50A 128K PWM ESC - Mini 20x20 (Plug and Play)

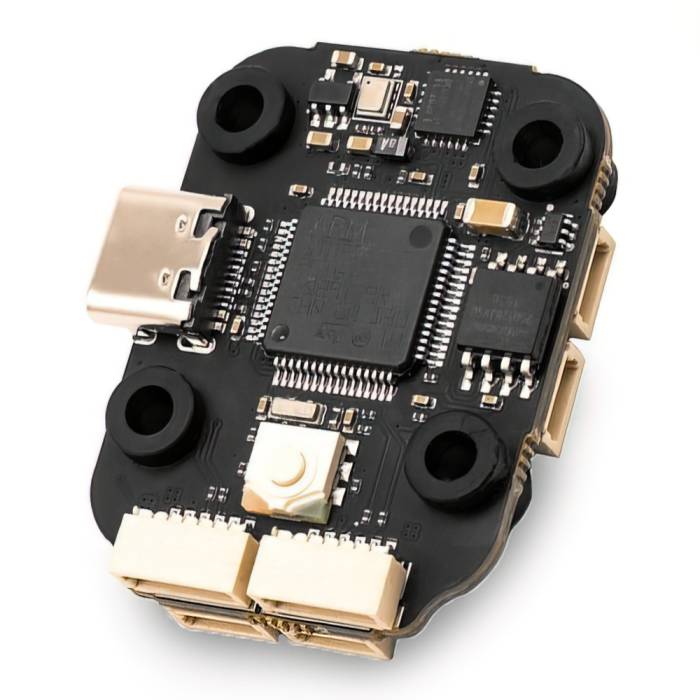

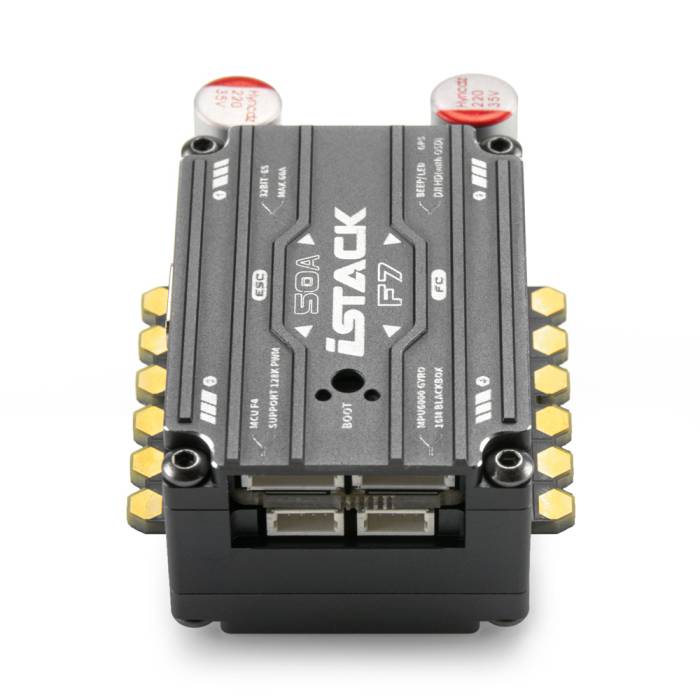

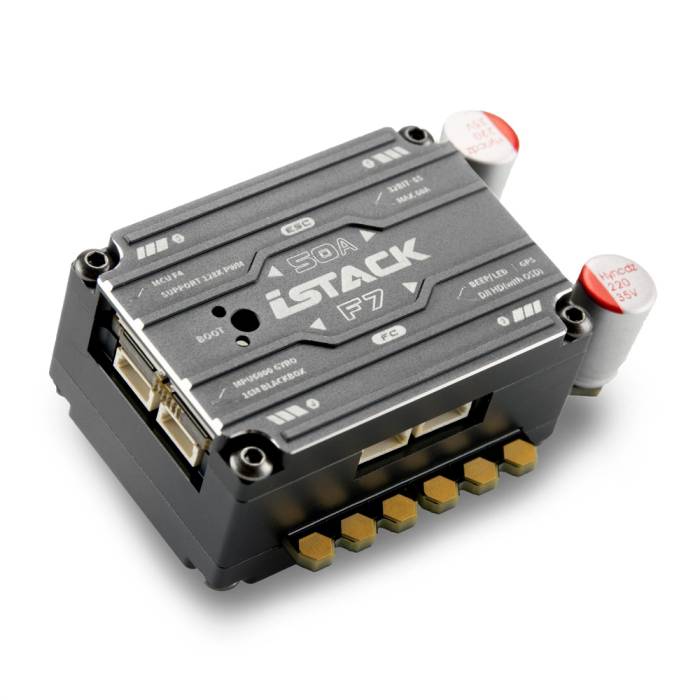

The Axisflying iStack features an F722 Flight Controller that is plug-and-play compatible for both Analog and HD and connects easily to a DJI FPV Air Unit! The 50A ESC works on a 128K PWM frequency. This stack has a 20x20 mounting pattern and features an MPU6000 Gyro, QMP6988 Barometer, 5V 3A BEC, and a solid aluminum casing with double solid electrolyte capacitors.

Features

• 16MB (128Mbit) BlackBox Flash
• DJI FPV Air Unit Compatible
• 128K PWM Frequency
• Works with iStack
• Aluminum Casing
• MPU6000 Gyro
• F722 Processor
• Plug and Play
• 50A ESC

Specifications

• ESC: 50A (Continuous) / 60A (Burst) BLHeli_32
• Dimensions: 50.9x23.1x38mm
• Mounting Pattern: 20x20mm
• ESC Sensor: Supported
• PWM Frequency: 128K
• Target: AXISFLYING F7
• HD-Analog: Supported
• X8 PWM: Supported
• LED-Bz: Supported
• MCU: STM32 F722
• Input Voltage: 2-6S
• GPS: Supported
• Blackbox: 16MB
• Gyro: MPU6000
• Baro: QMP6988
• BEC: 5V@3A
• Plug & Play
• UARTS: 6

Includes

• 1x Axisflying iStack - F722 DJI FC + 50A 128K PWM ESC - Mini 20x20 (Plug and Play)
• 1x XT60 Connector to 12AWG Bare Wire
• 2x 220 35V Capacitors
• 5x Connecting Wires
• 1x Hardware Set
