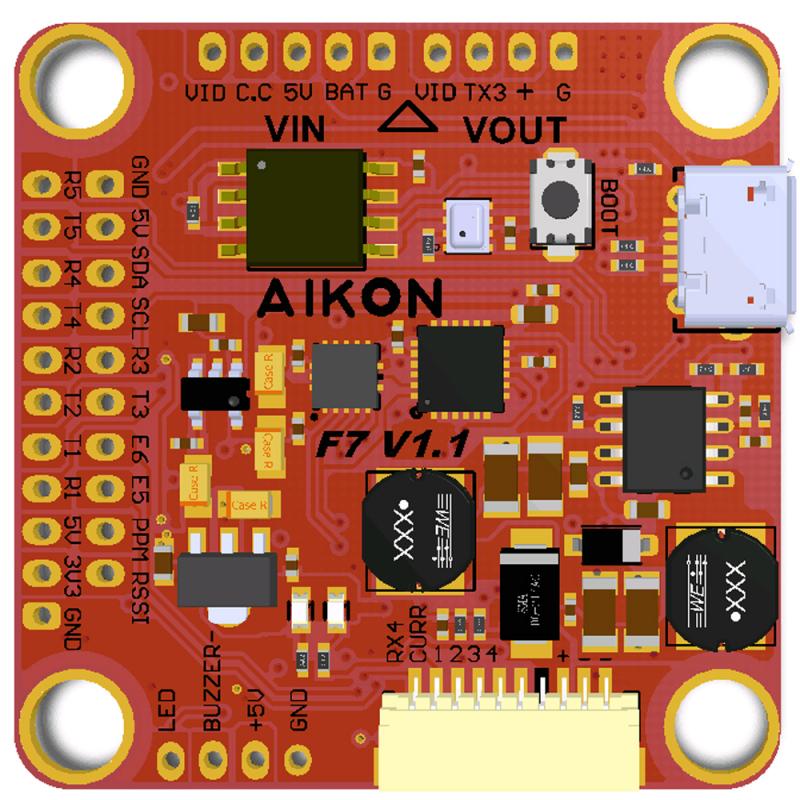

AIKON F7 FLIGHT CONTROLLER

The Aikon flight controller is a new generation flight controller designed specifically to work with Aikon 4-in-1 ESCs. We've packed all the greatest features into one seamless flight experience.

What makes the Aikon F7 amazing?

• 216mhz F7 processor
• 5 Software invertable hardware UARTS
• Onboard OSD and blackbox
• Software controlled VTX power switch
• LED outputs
• Quick connection cable for 4-in-1 ESCs, works out of the box with the Aikon 4-in-1 ESCs
• On-board voltage regulator up to 6S

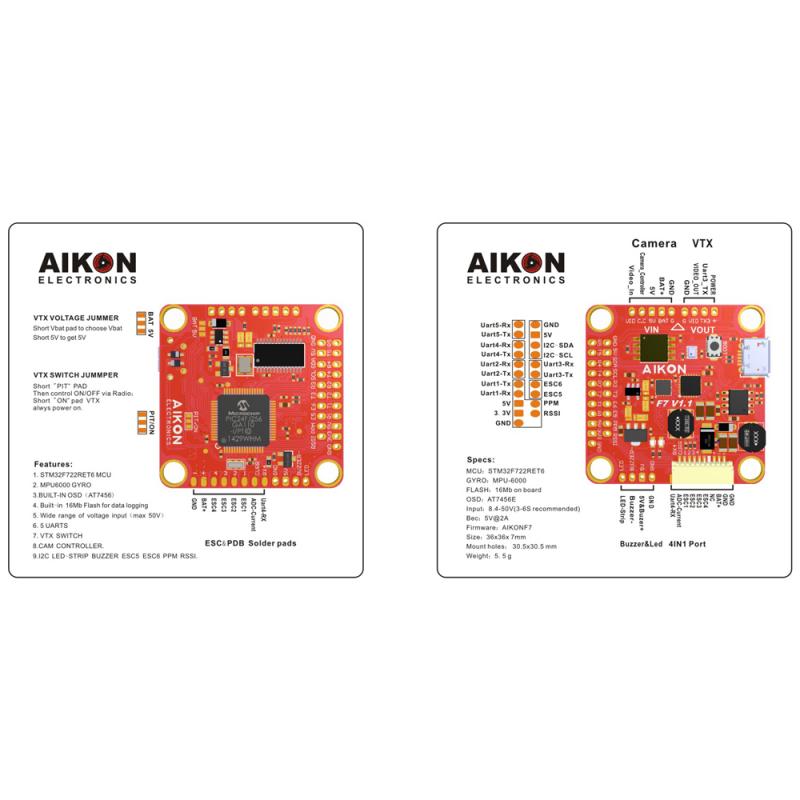

SPECIFICATIONS

• Battery 2-6s
• Mount Hole2 30.5*30.5mm
• Firmware Betaflight AIKONF7 Target
• MCU STM32F722
• IMU MPU6000/ICM20602(optional)
• Blackbox SPI 16MB
• Weight 12g
