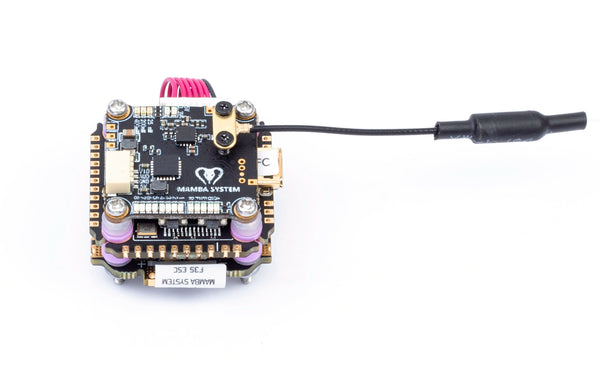

MAMBA STACK F405 MINI MK3 /35A 3-6S 8BIT /TX400MW VTX

Name: MAMBA STACK F405 MINI MK3 /35A 3-6S 8BIT /TX400MW VTX
Brand: DIATONE
SKU: OJ03489
Price: 6013 INR
Availability: OutOfStock
Rating: 5 (1 reviews)

Be the first to review this product

Out of stock

SKU

OJ03489

Special Price ₹6,013.00 Regular Price ₹6,287.25

Notify me when this product is in stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Description

Diagram Link From Help Centre Link

FIRMWARE TARGET ： MAMBA F405US

The Stack can fit both M2/M3 Mounting hole Framekit （Adaptor inside）

FC Specifications

MCU:STM32F405
IMU: MPU6000
Baro: No
OSD: BF OSD

FLASH: 16M
Uarts: 6Set
ESC Soft: Dshot300/600/
LED: Blue&Orange for FC Status,, White 5V, Red 3.3V

WS2812 LED Control: BF LED Control
Smart audio: Yes

Input: 2~6S Lipo (8.4~25V)
VTS Protection: Yes

UARTS:6 Ports

BEC: 5V 2A&9V 1.5A

FC Firmware
BetaFlight
Target: MAMBA F405US

Mounting: 20×20mm,Φ2
Dimensions: 30×36.5×13.5mm
Weight: 3.9g

Mamba F35 35A ESC

Item name: Mamba F35HV ESC

Input voltage: 3-6S LIPO (12.5- 25V)

Burst Curr :200A

MAX:45A(8S)

BEC: NO

Mounting Size: 20×20mm,⌀ 2

Mounting Hole: M2

Weight: 7g

Mamba VTX TX400

Working Voltage: 5V
Working Current: 600mA (5V/400mw)
Working Temperature: 97 ℃
Video Input Impedance: 75Ω
Size: 24×24×5.5mm
Antenna Connector: IPEX
Video Format: NTSC / PAL 协议：IRC
Output Power: 14db (25mw) ,23db (200mw), 26db (400mw) Supply :Antenna WEIGHT: 16.5g

Package Included:

1 x Mamba F405 Mini Betaflight Flight Controller

1 x Mamba F35 35A 6SHV ESC

1 x Mamba TX400
