Mini 3 Way Cam Switcher

DETAILS

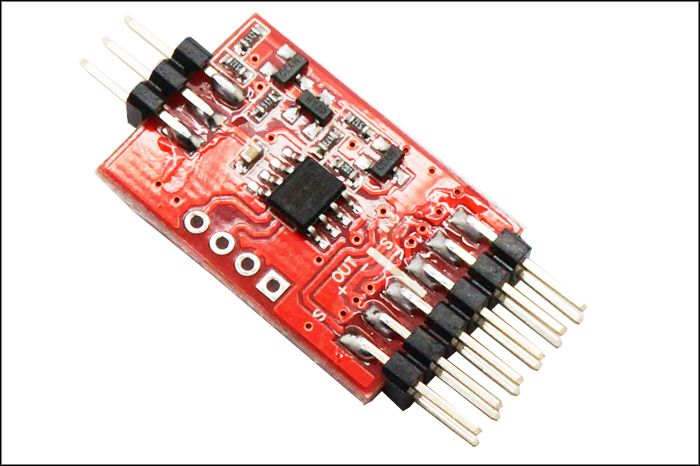

This module can connect 3 video sources and you can switch between different video sources with a 3 position switch to your ground station. If you have multiple cameras on your plane, this is what you need.

 Descriptions:
- This is a 3 channel switcher module, adopts high speed video switch chip, effectively reduce the vibration of the Video image.
- compatible with 3 position switch channel

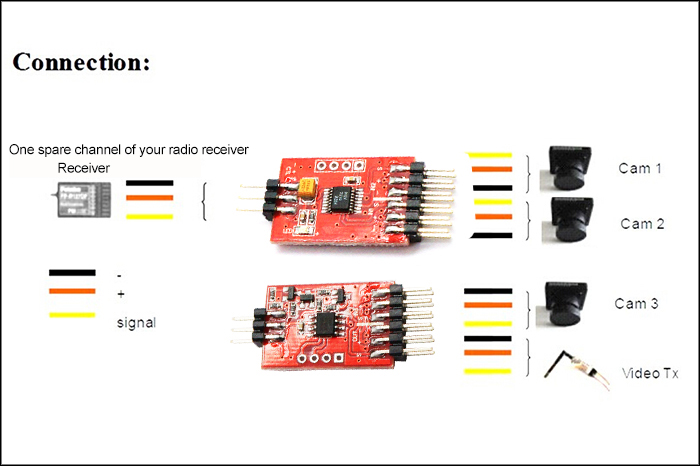

- Port "in" is video signal input,IN1, IN2, IN3,OUT is video output
- "-" is negative pole, "+" suspend, "S" is receiving Video signal

Specification:
- Size: 45x18x5mm
- Input voltage: 4.8-6v
- Input channels: 3
- Output channel: 1
- Video signal impedance: 75

Notice: when out port supplied by 12V voltage, there are 12V output on three cam ports. Please make sure the cam is available to 12V voltage to avoid any burn.
