FH318Z V2 HD 18X Optical Zoom Camera with 3-axis Gimbal

DETAILS

The FH318Z V2 is the update version of FH318Z. FH318Z V2 is a high end HD zoom camera with accurate 3-axis gimbal based on FOC motor control technology, it offers great imgae quality throughout its full zooming range. With the FH318Z V2 zoom camera, your drone can see target over distance in circumstances eg. fire fighting, long range surveillance, power line inspection etc. The FH318Z V2 offers 1080p FULL HD 30fps video recording onboard and 1080p (we also have 720p version FH318)HDMI output for HD video transmission back to the ground.The high accuracy gimal offers 0.02 degree incredible precise control which really help to get a clear image zoomed in.Combined with camera's digital imaged stablization, you can get very good image just like you are near by.The gimbal has variable travel speed control over RC, so you can change the moving speed of the gimbal depending on situations.FH318Z V2 offers both AV and HDMI output ,so you can choose to use traditional 5.8G video link or HD video link like lightbridge, Connex or Insight.

The differences between FH318Z V2 and FH318 HD zoom camera with 3-axis gimbal:
1. FH318Z V2 has a hub to protect all cables that make you control gimbal and camera much easier than FH318.
2. FH318Z V2 has 1080P HDMI output, and FH318 has 720P HDMI output.

 Features:

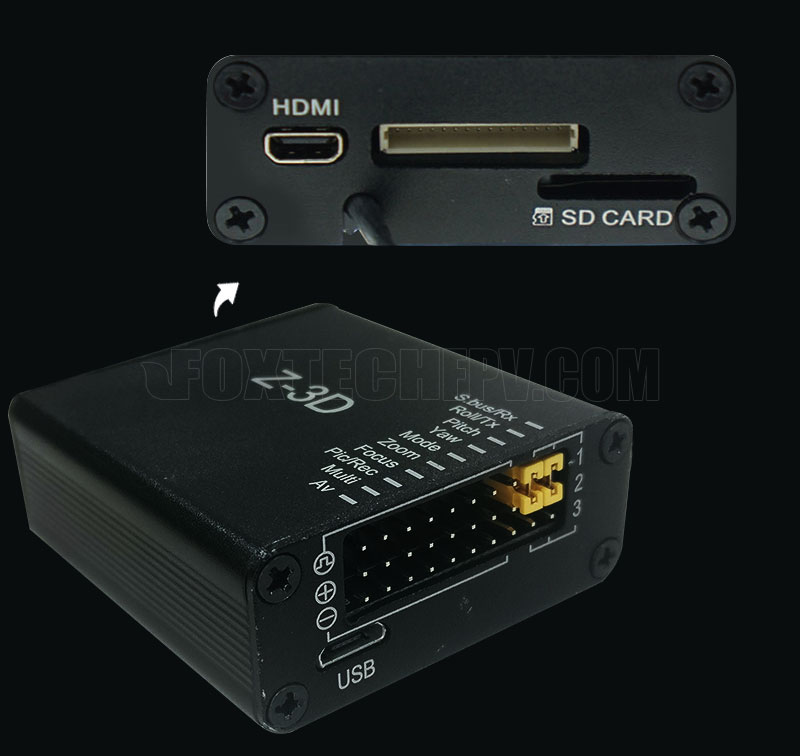

-HDMI & SD card externally arranged
-Weight: 540g
-Power saving: 330mA@12V
-High Precision:0.02 degree
-Optical zoom: 18x zoom
-High image quality: up to 14 mega pixel
-Focus time: less than 1 second
-Dual output: HDMI and AV

Gimbal Features:
-Adjustable Gimbal Speed
-Multiple Gimbal Mode
-One-key Back to Center
-Support PWM and serial port command control, suitable for close range control or remote digital gimbals control.

Camera Features:
-18x optical zoom, Full HD 1080p video streaming,14MP shoot
-Ultrafast auto focus
-Various interfaces, analog video output, HDMI HD video output
-Support PWM and serial port command control, suitable for close range controller or remote digital gimbals control.

Specification:
-Voltage: 3s (11.1v)
-IDDQ: 330mA@12V
-IDDT: 450mA @12V
-Temp: -10~+50 °C

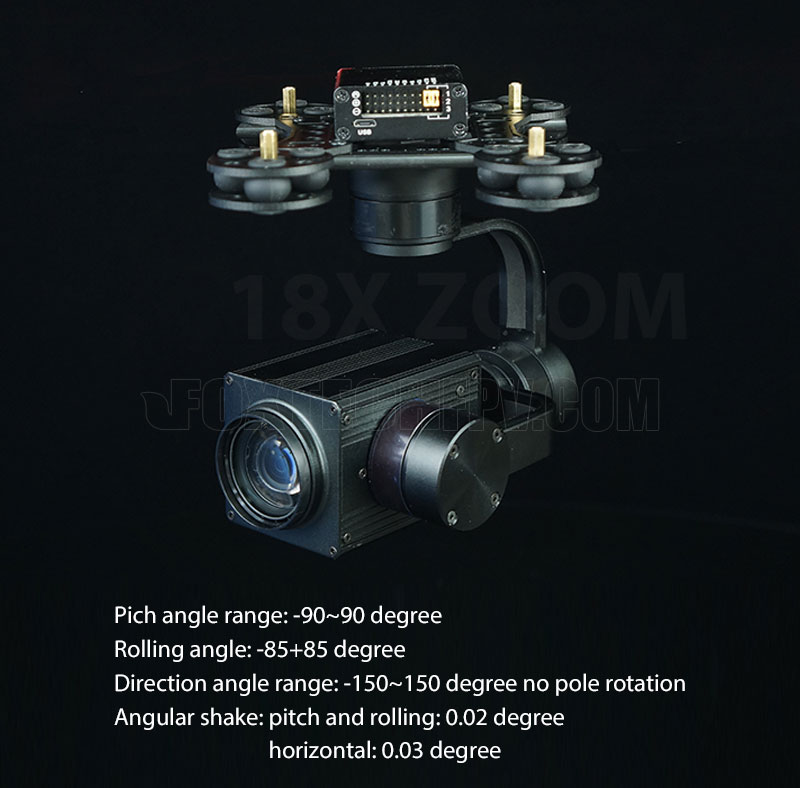

-Pitch: -90°to +90°
-Roll: -85°to +85°
-Yaw: -150°to +150°smooth rotation
-Angular Vibration Range:
-Pitch & Roll: 0.02°
-Yaw: 0.03°

Your purchase includes:
-1xFH318(1080P) V2 HD 18x Optical Zoom Camera
-1xFH318(1080P) V2 3-axis gimbal
-1xRemote Controller

Manual Download
