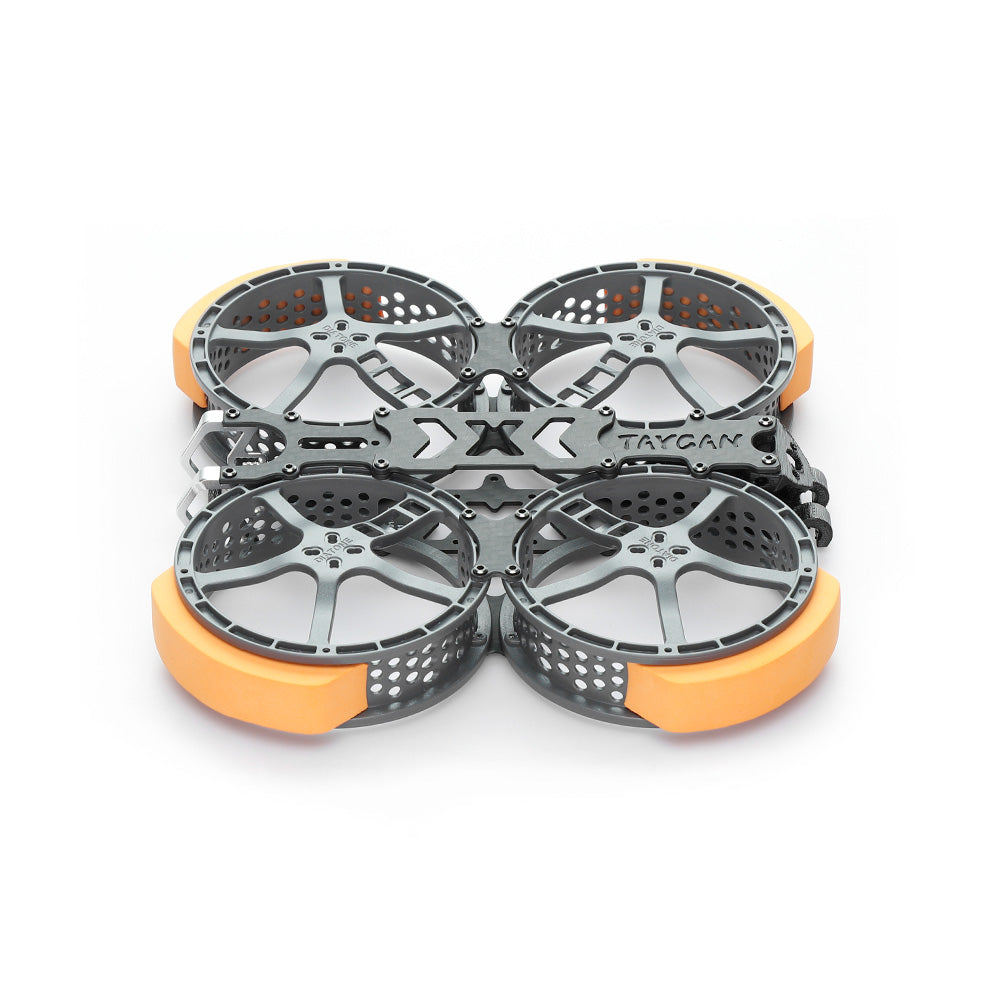

Diatone Taycan 25 Duct Cinewhoop Frame Kit

The newest version will use this type of semi-protective foam

From the first batch release, we received feedback from our market and customer

Using the Semi-Protective foam can improve the drone efficiency and lower the noise, reduce some weight.

TAYCAN 25 Frame Kit Specification

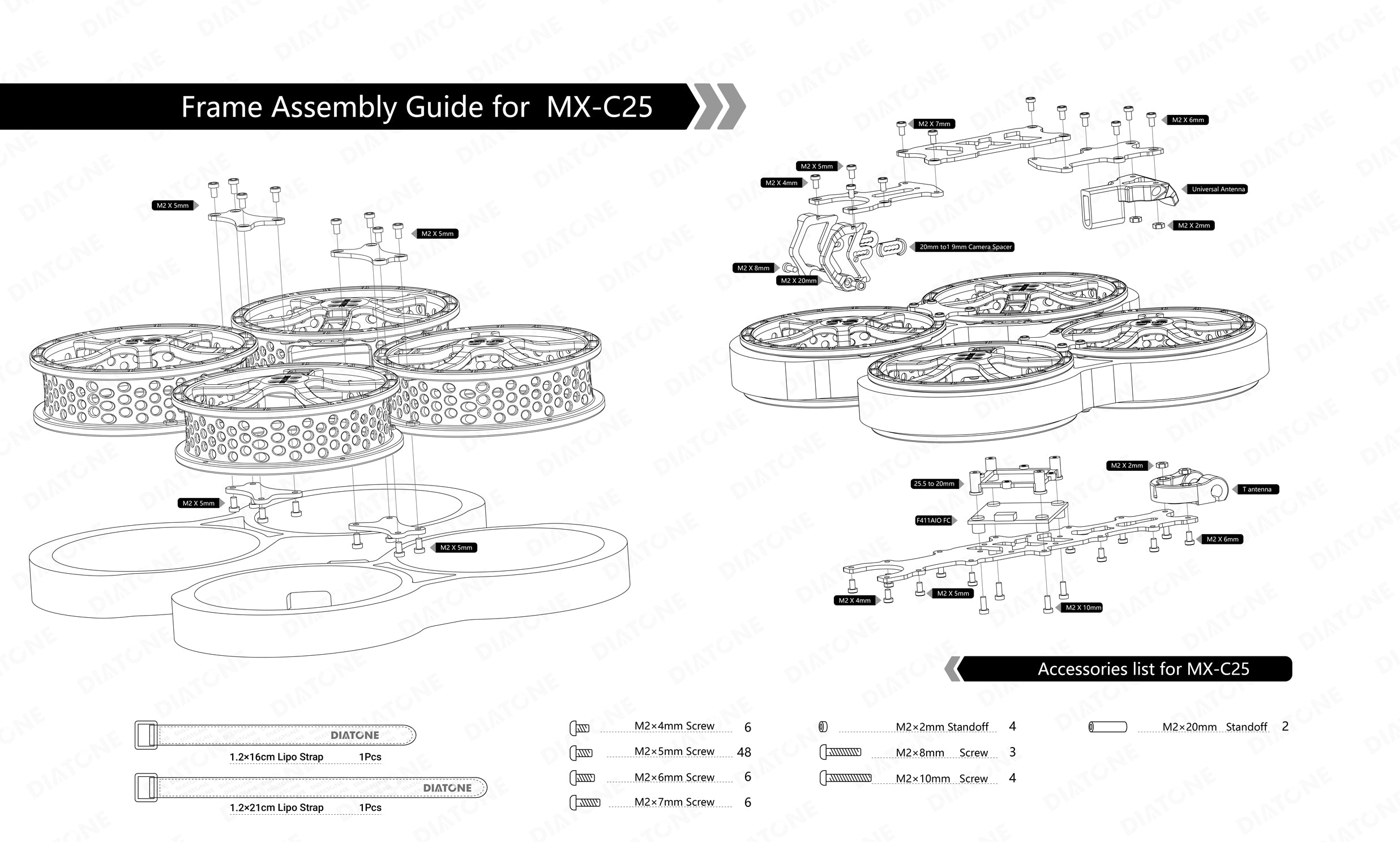

Frame Diagram Link

Wheelbase ：125mm
Weight ：86g
Prop Siza ：2.5 inch
FC Mounting:20×20&25.5×25.5m（M2）
Motor Mounting:9mm&12mm
Top Plate 1.5mm
Bottom Plate 1.5mm
Rated Volitage（Recommendation）：4S
bai Aluminum alloy：7075
carbon fiber:T300 3K
EVA
Weight:86g
