Tarot FY680 CF Folding Hexacopter(TL68B01)
₹12,442.66
Availability:
In stock
In stock
SKU
4418
Tarot FY680 TL6801 Product description:

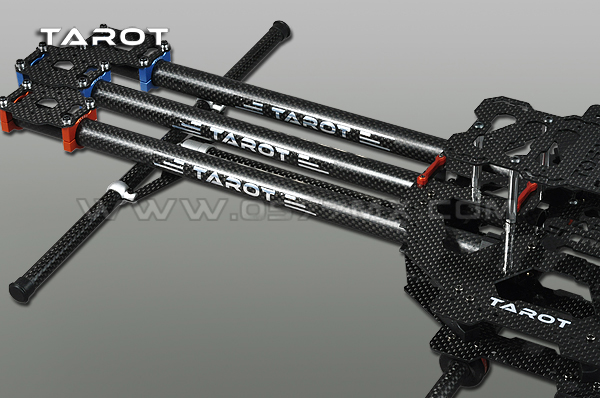

- Tarot FY680TL6801 adopts Toray 3K carbon fiber cloth woven carbon fiber board CNC precision machining, his design standards is higher than similar products, the full set of rack only weighs 600 grams. Full folding design, the needle
Designed for users with high portability requirements, particularly suited to do surveillance, remote sensing, mapping, airborne reconnaissance,Observed fire, life exploration, the cable line patrol, farm monitoring, and other high mobile performance requirements.
Tarot FY680 TL6801Configuration requirements:
- Wheelbase diameter 680MM,10-13-inch carbon fiber propeller, about 300W light disc motor, brushless motor:
- 2212/2216/2814 Series 880-1000KV 2000MHA 3-4S battery, 20-30A Brushless ESC
- With a moderate load (for example, small digital camera, a small single electronic camera, etc.), for a variety of small-scale aerial job (Photos, video) with the ground station system can achieve a variety of light load task operation.

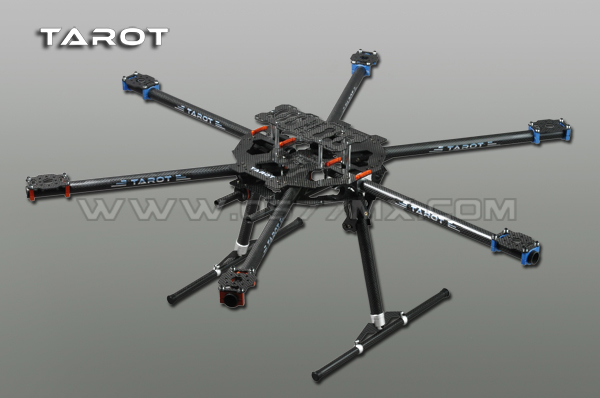

Tarot FY680 TL6801 Hexacopter Frame Package configuration:
- FY680 folding 6-axis carbon fiber adapter cover TL6803
- 16MM carbon tube folded positioning seat assembly. TL6804
- Metal 16MM carbon tube clamper group. TL6805

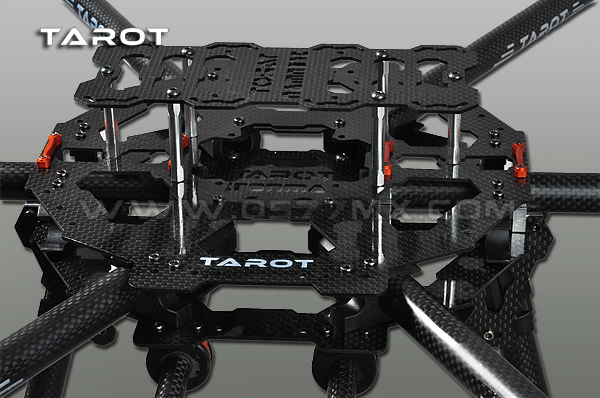

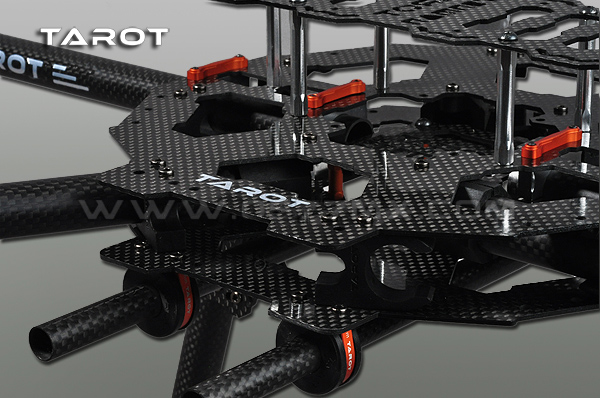

- FY680 folding six-axis carbon fiber panels, center board TL6806
- M3H5 hexagonal aluminum column TL6807
- M16 aircraft motor mount TL6808
- Dia 16MM 3K pattern matte pure carbon tubes (333MM) TL6809-1
- Dia 16MM 3K pattern matte pure carbon tubes (323MM) TL6809-2
- The M10 metal silicone damping Seat TL6810
- Plastis Landing Skid
- FY680 six-axis aircraft folding landing skid TL6811
- M2.5 ladder screws TL2778-01
- 500 dedicated outfield bag / black - reinforced TL2647 (optional, not included)
Tarot FY680 TL6801 other parts:
- Small stickers × 1
- Medium stickers × 2
- User Manual × 1
- Package Weight: 950g Suggested setup:
6x 2212 KV980 motor
3 pairs 10 inch propellers(carbon fiber 1038 or 1047)
6x 18-30A ESC
- Tarot FY680TL6801 adopts Toray 3K carbon fiber cloth woven carbon fiber board CNC precision machining, his design standards is higher than similar products, the full set of rack only weighs 600 grams. Full folding design, the needle
Designed for users with high portability requirements, particularly suited to do surveillance, remote sensing, mapping, airborne reconnaissance,Observed fire, life exploration, the cable line patrol, farm monitoring, and other high mobile performance requirements.
Tarot FY680 TL6801Configuration requirements:
- Wheelbase diameter 680MM,10-13-inch carbon fiber propeller, about 300W light disc motor, brushless motor:
- 2212/2216/2814 Series 880-1000KV 2000MHA 3-4S battery, 20-30A Brushless ESC
- With a moderate load (for example, small digital camera, a small single electronic camera, etc.), for a variety of small-scale aerial job (Photos, video) with the ground station system can achieve a variety of light load task operation.
Tarot FY680 TL6801 Hexacopter Frame Package configuration:
- FY680 folding 6-axis carbon fiber adapter cover TL6803
- 16MM carbon tube folded positioning seat assembly. TL6804
- Metal 16MM carbon tube clamper group. TL6805
- FY680 folding six-axis carbon fiber panels, center board TL6806
- M3H5 hexagonal aluminum column TL6807
- M16 aircraft motor mount TL6808
- Dia 16MM 3K pattern matte pure carbon tubes (333MM) TL6809-1
- Dia 16MM 3K pattern matte pure carbon tubes (323MM) TL6809-2
- The M10 metal silicone damping Seat TL6810
- Plastis Landing Skid
- FY680 six-axis aircraft folding landing skid TL6811
- M2.5 ladder screws TL2778-01
- 500 dedicated outfield bag / black - reinforced TL2647 (optional, not included)
Tarot FY680 TL6801 other parts:
- Small stickers × 1
- Medium stickers × 2
- User Manual × 1
- Package Weight: 950g Suggested setup:
6x 2212 KV980 motor
3 pairs 10 inch propellers(carbon fiber 1038 or 1047)
6x 18-30A ESC
