Mini 2 Way Cam Switcher

DETAILS

 Functions:

- Switching 2 cameras/DV AV signal from remote controller to OSD or AV transmitter

- Enjoying different view angles during flight
- No damage for images, very low resistance
- It could be used as electronic ignitor, shutter trigger, etc.

Features:
- 2 in and 1 out electronic switches
- 3 RC switches directly controlled
- Light weight, small size

Specifications:
- Size: 16*16mm
- Compatible with: All PWM remote control

Package included:
- AV Video Switcher x1
- Straight pin x2
- Bent pin x2

Instructions:
Long bright- Module's PWM signal input is abnormal- AV_IN1 is connected to AV_OUT
Quick flash- Module's PWM signal input is normal- AV_IN1 is connected to AV_OUT
Slow flash- Module's PWM signal input is normal- AV_IN2 is connected to AV_OUT
(Quick and slow flash are switched by the channel which connects the RC receiver to video switcher.)

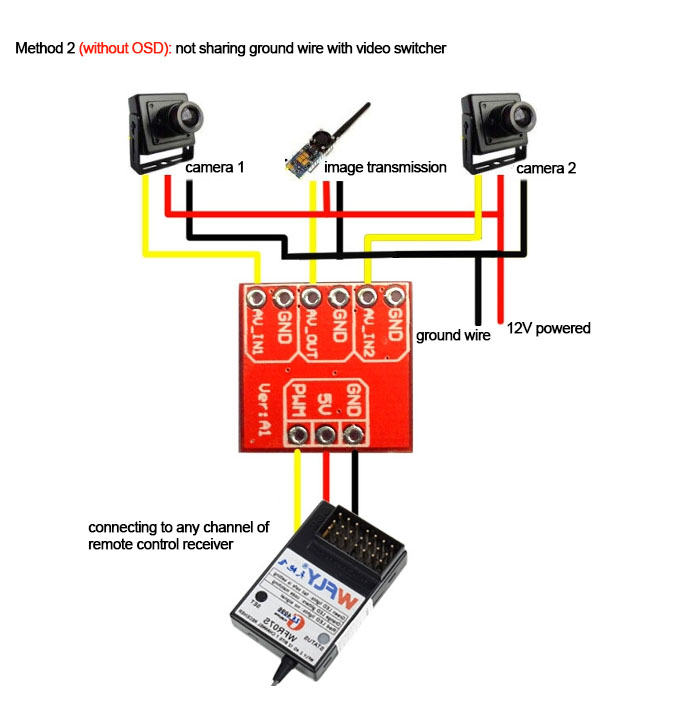

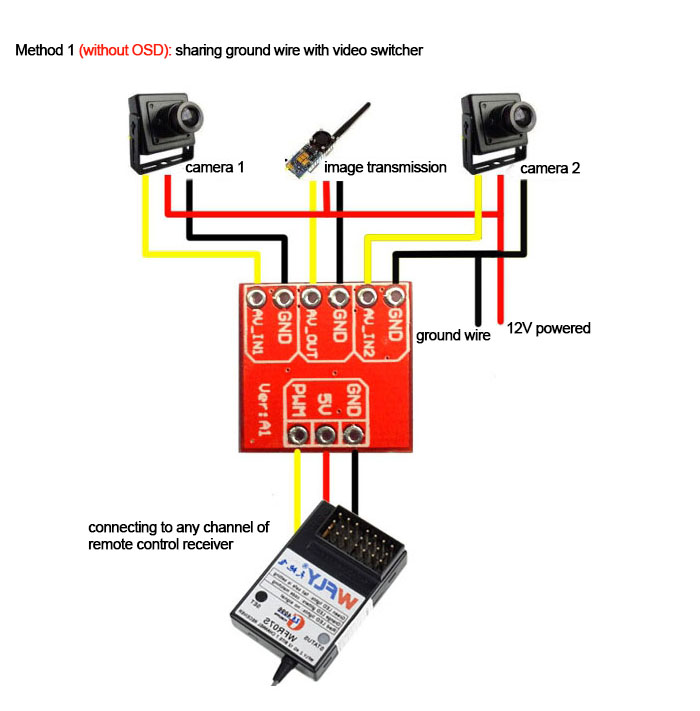

Notice: Please be careful about the wiring sequence when using it. The video switcher module is powered with 5V by RC receiver, so 12V is completely forbidden.
