• 5.8Ghz Receiver only

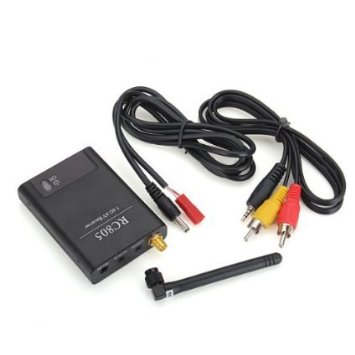

    The RC805 5.8Ghz AV Receiver features a digital channel display and jumperless, one press channel selection. This receiver also includes an additional AV output for video recording while using FPV goggles.

    Specs.
    Receiving sensitivity: < -90dBm
    Receiving frequency: ISM 5.8GHz 8CH
    Antenna port: 50ohm RP-SMA
    Antenna: Gain: 2dBi
    Power supply: DC12V 220mA
    Video output level: 1Vp-p @ 75ohm
    Audio output level: 1Vp-p @ 10Kohm
    Dimensions: 72.5×54.2×15.5mm
    Weight: 52g (w/antenna)

    Channels
    5.8G : 5705,5685,5665,5645,5885,5905,5925,5945MHZ

  • Additional Information

    Weight 0.25 kg
