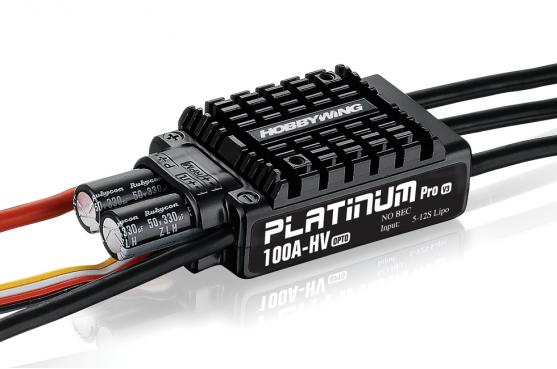

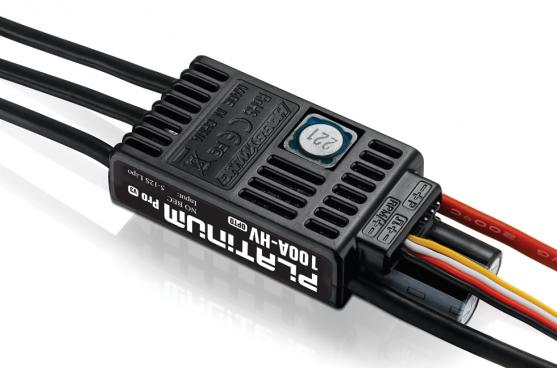

HobbyWing Platinum HV 100A OPTO V3 ESC

Purchase this product now and earn 26 Points!

 10,370.00

Only 1 left in stock

SKU: 6938994402439 Categories: ,
  • Specifications

    Product Name

    Platinum HV 100A OPTO V3

    Product Number

    30203600

    Type

    Brushed/Brushless

    BL

    High Voltage/Regular

    HV

    Specifications

    Cont./Peak Current

    100A/140A

    Input

    5-12S LiPo

    BEC Output

    No

    Wires & Connectors

    Input Wires

    Red-12AWG-150mm*1/Black-12AWG-150mm*1

    Output Wires

    Black-12AWG-100mm*3

    Input Connectors

    No

    Output Connecotors

    No

    (Note: All the wire length above is the original length not the length you see from the outside.)

    ESC Programing via

    Transmitter

    Supported

    LED Program Card

    Not Supported

    LED Program Box

    Not Supported

    LCD Program Box

    Supported

    WiFi Module

    Supported

    Program Port

    Separate Program Port

    Firmware

    Firmware Upgrade

    Supported

    Size & Weight

    Size

    77.0×35.0x21.0mm

    Weight

    104g

    Applications

    550-600 Class Heli 3D, .90-.140 Class Airplane 3D, Light Weight FAI F3A

  • Additional Information

    Weight 0.20 kg
