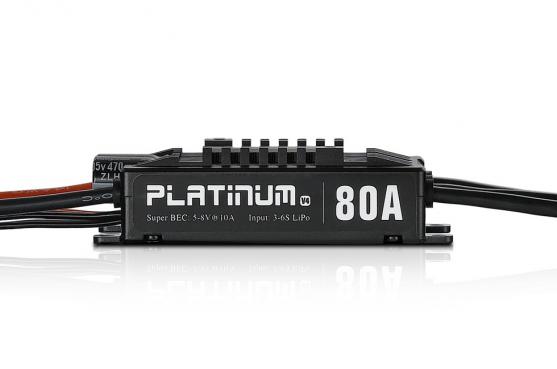

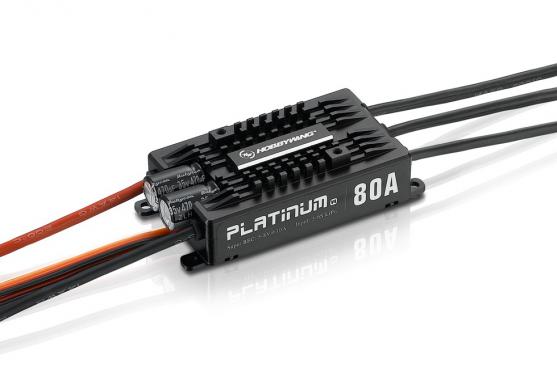

HobbyWing Platinum 80A V4 ESC

Purchase this product now and earn 20 Points!

 7,820.00

Only 1 left in stock

SKU: 6938994402637 Categories: ,
  •

    Specifications

    Product Name

    Platinum 80A V4

    Product Number

    30203200

    Type

    Brushed/Brushless

    BL

    High Voltage/Regular

    Regular

    Specifications

    Cont./Peak Current

    80A/100A

    Input Voltage

    3-6S LiPo

    BEC Output

    Switch Mode:5-8V,10A

    Wires & Connectors

    Input Wires

    Red-12AWG-150mm*1/Black-12AWG-150mm*1

    Output Wires

    Black-12AWG-100mm*3

    Input Connectors

    No

    Output Connecotors

    4.0mm Gold Connectors (Female)

    (Note: All the wire length above is the original length not the length you see from the outside.)

    ESC Programing via

    Transmitter

    Not Supported

    LED Program Card

    Not Supported

    LED Program Box

    Not Supported

    LCD Program Box

    Supported

    WiFi Module

    Supported

    Program Port

    Separate Program Port

    Firmware

    Firmware Upgrade

    Supported

    Size & Weight

    Size

    84.3×38.2×20.4mm

    Weight

    97g

    Applications

    450L-500 Class Heli (Main Blade: 380-470mm)/.70 Class Fixed-wing Airplane 3D/EDF (with Diameter≦75mm)

  • Additional Information

    Weight 0.20 kg
