•  Specification:

    Brand Name: Hobbywing

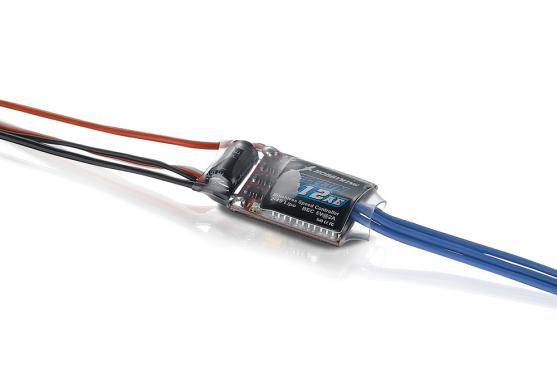

    Item Name: FlyFun 12AE Brushless ESC
    Output: Continuous 12A, Burst 15A up to 10 seconds
    Input Voltage:  2-4 cells lithium battery or 5-12 cells NiCd/NiMh battery
    BEC: 2A / 5V Linear mode BEC
    Refresh rate of the throttle signal: 50Hz to 432Hz
    Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.(BLM = BrushLess Motor)
    Size: 38 x 18 x 7mm
    Weight: 10.2g

    Features:

    Safety arming feature:  Regardless the throttle stick position, the motor will not spin after battery connected.
    Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters.
    User programmable.
    Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
    Compatible with Lipo battery and NiCd/NiMH battery.
    Internal timing can be changed to be suitable for different brushless motors.
    Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection.
    Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.

    Package Included:

    1 x Hobbywing FlyFun 12AE Brushless ESC

  • Additional Information

    Weight 0.25 kg
