• For entry-level enthusiasts, DJI now brings out the most cost-effective solution, the NAZA-M Lite flight control system. As the simplified version of NAZA-M, it inherits the high reliability and stability of NAZA-M in a basic package offering a very competitive price. The innovative All-in-One design simplifies installation and saves space and weight. It contains inner damping, controllers, 3-axis gyroscope, 3-axis accelerometer and barometer in its light and small Main Controller. It can measure flying altitude, attitude and therefore can be used for autopilot/automatic control.

    The included plug and play GPS module will greatly enhance the performance for aerial photography with accurate Position Hold, Return-To-Home and Intelligent Orientation Control functionalities. With the GPS Module, the multi-rotor will have position and altitude locked accurately even in windy conditions. Hovering accuracy is approximately 2.5m horizontal and 0.8m vertical.

    The advanced attitude stabilization algorithm not only inherits the outstanding flight stability of DJI products, but also provides excellent maneuverability. It is more flexible and stable, and gives the hobbyists a wonderful flight experience.

    Features:
    • All-in-One Design
    • GPS Module Available/Accurate Position Hold
    • Low Voltage Protection
    • 6 Supported Multi-rotor Types
    • Advanced Attitude Stabilize Algorithm
    • Intelligent Orientation Control (IOC)
    • Motor Arm and Motor Dis-arm
    • Built-in Gimbal Stabilization Function
    • Multiple Flight Control Mode/Intelligent Switching
    • Failsafe Mode
    • Support Futaba S-Bus and PPM Receiver
    • Remote Adjustment

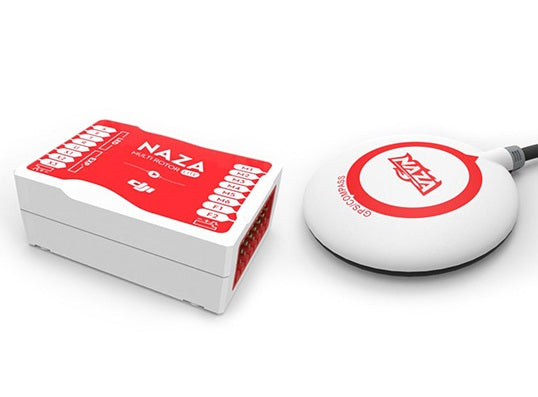

    Included:
    Naza-M Lite Main Controller
    DJI GPS/Compass Module
    DJI V-SEN LED Module
    USB Data Cable
    All necessary mounting hardware/connection leads

    Specs:
    Supported Multi-Rotor: Quad-rotor I4, X4, Hex-rotor I6, X6, IY6, Y6
    Supported ESC output: 400Hz refresh frequency
    Recommended Transmitter: PCM or 2.4GHz with minimum 4 channels
    Working Voltage Range: MC: 4.8V~5.5V, VU Input: 7.4V~26.0V (recommended 2S~6S Lipoly)
    Power Consumption: MAX: 1.5W (0.3A @ 5V), Normal: 0.6W (0.12A @ 5V)
    Operating Temperature: -10°C ~ 50°C
    Assistant Software System Requirement: Windows XP sp3/Windows 7/Windows 8
    Dimensions: MC: 45.5×31.5×18.5mm, VU: 32.2×21.1×7.7mm, GPS & Compass: 46mm (diameter)x9mm
    Weight: MC: 25g, VU: 20g, GPS: 21.3g

    Flight Performance:
    Hovering Accuracy (GPS Mode): Vertical: +/-0.8m, Horizontal: +/-2.5m
    Max Yaw Angular Velocity: 200°/s
    Max Tilt Angle: 45°
    Ascent/Descent: +/-6m/s

  • Additional Information

    Weight 1 kg
