• Specification:

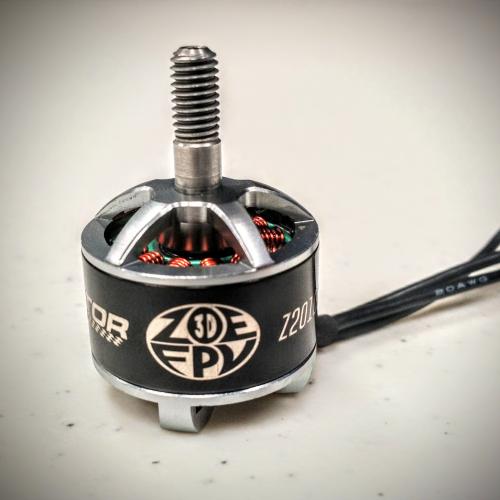

    1. The Special magnet for ZoeFPV Motor.
    2. The bearing is NMB(Japan) , smooth and a long life.
    3. 0.15mm laminations, maximum efficiency and minimum Eddy Current losses.
    4. Ultra-flexible motor leads with high-temp 220 °silicone rubber.
    5. Power Optimization
    6. With rotor dynamic balance process.

    Stator Diameter: 20 mm
    Stator Thickness: 10 mm
    Number of Stator Slots: 12
    Number of Magnet Poles: 14
    Motor Kv Value: 2400 RPM
    No Load Current (Io) 1.0 Amps @ 10 Volts: 1.1 Amps
    Motor Resistance (Rm) per Phase: 0.07 Ohms
    Motor Resistance (Rm) Phase to Phase: 0.05 Ohms
    Maximum Continuous Current: 33 Amps
    Max Continuous Power (3-cell Li-Po): 380 Watts
    Max Continuous Power (4-cell Li-Po): 480 Watts
    Motor Weight: 37 g
    Outside Diameter: 25.5 mm
    Motor Shaft Diameter: 3 mm
    Prop Shaft Diameter: 5 mm
    Motor Body Length: 23 mm
    Overall Shaft Length: 37.2 mm
    Motor Timing: 5-10 degrees
    PWM Frequency: 8-20 KHz

    Included:
    1 Z2010/2400KV motors
    2 flanged aluminum lock nut
    4pcs M3*6mm YFS screw
